SCP Honeycle Dehumidifier


  • Stable supply of dry air with dew point up to -45C
  • PID Temperature Controller
  • Display of Regeneration Temperature, Return Air Temperature, etc.
  • Speed adjustable Desiccant Rotor
  • 7 days Programmable Timer with auto start-up function
  • Protection devices to protect from motor overload and single phasing
  • Highly efficient

3-in-1 Dehumidifier

SCP 3 in 1 Dehumidifier


Other features:
  • Can supply steady dried air with dew point up to -45C and able to eliminate the possibility of material shrinkage, splash and shrink marks as well as moisture re-absorption.
  • Apply "Rotating Honeycomb" principle and operate in CLosed Loop System
  • Specially designed Desiccant Rotor in which the cycle of dehumidification, regeneration and cooling process conducts repeatedly and simultaneously.
  • Ideal for drying those materials that require a steady supply of dry air with low dew-point and constant temperature and a residual moisture content of 0.02% or less.

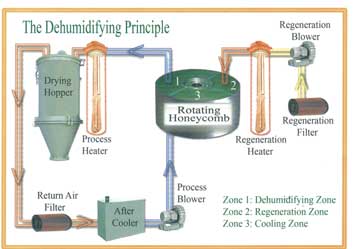

Dehumidifying principle



SCP DehumidifierDehumidifier
What is Honeycle? The molecular sieve and silica gel are strongly bonded to ceramic fibers inside the rotor. As a result, the rotor will not produce any powder and is extremely long lasting. There are numerous small holes inside the rotor (desiccant). When the moist air passes through the holes, the moisture in the air will be absorbed. The air coming out from the rotor will be dehumidifed with extremely low dew-point. Regeneration will be conducted under the same principle but in reverse direction through the rotor (desiccant).
Dehumidifier dewpoint chart

Specification of NIC Series of SCP Dehumidifier


Model

NIC 60

NIC 80

NIC 120

NIC 150

NIC 200

NIC 300

NIC 400

NIC 500

Dry air flow rate         m3/hr

80

80

120

150

200

300

400

500

Process blower power    kw

0.4

0.4

0.75

1.5

1.9

2.6

3.7

5.6

Regen. blower power     kw

0.2

0.2

0.2

0.4

0.4

0.75

0.75

1.5

Regeneration heater       kw

3

3.5

3.5

4

5.4

7.2

8.1

10

In/Outlet pipe diameter  inch

2"

2"

2"

2"

2-1/2"

3"

3"

4"

Voltage (Phase)                V

Can opt for 220V, 3 80V, 415V or 440V (3 Phase)

Machine Size      Length

680

680

800

800

850

920

920

920

 (mm)                    Width

620

620

800

800

850

920

920

920

                                 Height

1200

1200

1600

1600

1680

1880

1880

1880

Weight (approx.)           Kg

120

120

120

215

225

240

280

290


Drying Capacity (Kg/Hr)


Material

DryIng (1)
Temp.(°C)

Drying (2)
Time(hr)

Moisture
Content (%)

Specific
Heat

Drying Capacity (2)

NIC 60

NIC 80

NIC120

NIC 150

NIC 200

NIC 300

NIC 400

NIC 500

ABS

80

2-3

0.2-0.6

0.34

35

50

75

90

120

180

240

300

IONOMMER

90

3-4

1.4

0.55

25

30

40

50

70

105

130

170

PA6/6.6/6.10

75

4-6

1.2-5

0.40

30

40

60

70

90

135

180

230

POM

100

2

0.08-0.25

0.35

35

50

75

90

120

180

240

300

PMMA

80

3

0.1-0.7

0.35

35

40

60

75

100

150

200

250

PA11

75

4-5

1.0-1.5

0.58

25

35

50

60

80

120

160

200

PA12

75

4-5

1.0-1.5

0.28

25

35

50

60

80

120

160

200

PBT

130

3-4

0.08-0.34

0.3-0.5

25

50

75

90

120

180

240

300

PC

120

2-3

0.3-0.36

0.28

30

55

80

100

130

185

260

320

PE

90

1

0.01

0.55

25

65

100

120

160

240

320

400

PET

160

4-5

0.08

0.3-0.5

25

30

40

50

70

100

130

170

P1

120

2

0.32

0.27

35

60

90

110

150

220

300

370

PP

90

1

0.02

0.46

30

65

100

120

160

240

320

400

PPO

110

1-2

0.13

0.40

30

55

80

95

130

190

260

320

PS (GP)

80

1

0.01

0.28

35

85

130

160

240

360

480

600

PSU

120

3-4

0.22

0.31

30

60

85

105

140

210

280

350

PU

90

2-3

0.2-0.9

0.45

30

40

60

75

100

150

200

250

PVC

70

1-2

0.1-0.4

0.20

45

55

80

95

130

190

260

320

SAN(AS)

80

1-2

0.1-0.3

0.32

35

55

80

95

130

190

260

320

Note (1): In an independent drying hopper.
Note (2): Based on relative humidity of 65% with ambient temperature of 20 °C, moisture content after drying is 0.02% or less.
